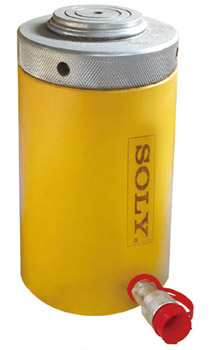

單作用，負載回縮
可經受的偏載荷達千斤頂額定承載能力的5%
溢流孔兼有限制行程的功能
自鎖可長時間保證安全保持載負

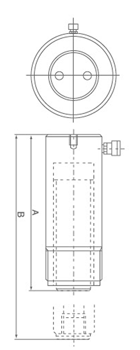

| 型號 | 負載 T |
行程 mm |
本體高度 mm |
油缸外徑 mm |
液壓油容量 cm³ |
重量 kgs |
| SL-CLL-502 | 50 | 50 | 164 | 128 | 357 | 15 |
| SL-CLL-504 | 100 | 214 | 128 | 713 | 20 | |
| SL-CLL-506 | 150 | 264 | 128 | 1070 | 25 | |
| SL-CLL-508 | 200 | 314 | 128 | 1426 | 30 | |
| SL-CLL-5010 | 250 | 364 | 128 | 1783 | 35 | |
| SL-CLL-5012 | 300 | 414 | 128 | 2139 | 40 | |
| SL-CLL-1002 | 100 | 50 | 187 | 178 | 667 | 30 |
| SL-CLL-1004 | 100 | 237 | 178 | 1333 | 39 | |
| SL-CLL-1006 | 150 | 287 | 178 | 1999 | 48 | |
| SL-CLL-1008 | 200 | 337 | 178 | 2666 | 56 | |
| SL-CLL-10010 | 250 | 387 | 178 | 3333 | 64 | |
| SL-CLL-10012 | 300 | 437 | 178 | 3999 | 73 | |
| SL-CLL-1502 | 150 | 50 | 209 | 218 | 990 | 53 |
| SL-CLL-1504 | 100 | 259 | 218 | 1980 | 66 | |
| SL-CLL-1506 | 150 | 309 | 218 | 2970 | 78 | |
| SL-CLL-1508 | 200 | 359 | 218 | 3960 | 92 | |
| SL-CLL-15010 | 250 | 409 | 218 | 4950 | 104 | |
| SL-CLL-15012 | 300 | 459 | 218 | 5940 | 117 | |
| SL-CLL-2002 | 200 | 50 | 243 | 245 | 1333 | 83 |
| SL-CLL-2006 | 150 | 343 | 245 | 3997 | 117 | |
| SL-CLL-20012 | 300 | 493 | 245 | 7995 | 170 | |
| SL-CLL-2502 | 250 | 50 | 249 | 275 | 1832 | 116 |
| SL-CLL-2506 | 150 | 349 | 275 | 5496 | 162 | |
| SL-CLL-25012 | 300 | 499 | 275 | 10995 | 234 | |
| SL-CLL-3002 | 300 | 50 | 295 | 325 | 2285 | 173 |
| SL-CLL-3006 | 150 | 395 | 325 | 6855 | 233 | |
| SL-CLL-30012 | 300 | 454 | 325 | 13740 | 323 | |
| SL-CLL-4002 | 400 | 50 | 335 | 376 | 2795 | 250 |
| SL-CLL-4006 | 150 | 435 | 376 | 8385 | 327 | |
| SL-CLL-40012 | 300 | 585 | 376 | 16800 | 441 | |
| SL-CLL-5002 | 500 | 50 | 375 | 425 | 3650 | 367 |
| SL-CLL-5006 | 150 | 475 | 425 | 10950 | 466 | |
| SL-CLL-50012 | 300 | 625 | 425 | 21930 | 617 | |
| SL-CLL-6002 | 600 | 50 | 395 | 498 | 4285 | 446 |
| SL-CLL-6006 | 150 | 495 | 498 | 12885 | 562 | |
| SL-CLL-60012 | 300 | 645 | 498 | 25650 | 737 | |
| SL-CLL-8002 | 800 | 50 | 455 | 530 | 5895 | 709 |
| SL-CLL-8006 | 150 | 555 | 530 | 17645 | 870 | |
| SL-CLL-80012 | 300 | 705 | 530 | 35370 | 1110 | |
| SL-CLL-10002 | 1000 | 50 | 495 | 608 | 7325 | 949 |
| SL-CLL-10006 | 150 | 595 | 608 | 21975 | 1141 | |
| SL-CLL-100012 | 300 | 745 | 608 | 43980 | 1430 |
